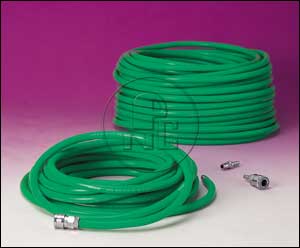

Zaisan Spray Hose
SP-SERIES
    PRODUCT FEATURES:
  • Manufactured to comply with international standard; ISO-5774
  • Mirror-smooth inner for improved flow
  • Uniform inner and outer diameter and thickness for the entired length
  • Lining and Cover surface are adjoined without any solvent bonding agent for durability
  • Resistant to a wide range of chemicals (see Chemical resistance guide)
  • Reinforced by polyester yarn to withstand high pressure
  • Working temperature of -5oC to 60oC
  • Bending radius is 5 times of ID
  • Light weight
  • Highly flexible for the ease of handling and operation
  • Excellent abrasion resistance



Applications


1.Agricultural- Spray for insecticides , mineral oils and fertilizers
2.Compressed Air- Spray painting
- Feeder line
3.Chemical- Chemical line feeder for industrial process (see Chemical resistance guide)


TECHNICAL DATA
Serial No. Nominal Size Size WP
Working Pressure		 BP
Bursting Pressure		 Gross Weight
ID X OD lenght / roll
(inch) (mmXmm) (m) (kgf/cm2) at 20 oC (kgf/cm2) at 20 oC (kg/roll)
SP08BP1345/168.5X1410040120.0012.5
SP10BP12413/3210X1640120.0016
Due to continuous improvement in our products, we reserve the rights to amend specifications without prior notice.
