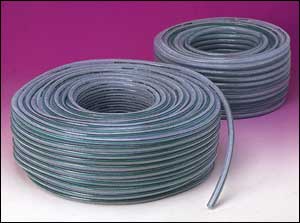

Zaisan Industrial Multi-Purpose Hose
MP-SERIES
    PRODUCT FEATURES:
  • Manufactured to comply with international standard; ISO-5774
  • Crystal-clear PVC construction with excellent transparency
  • Mirror-smooth inner for improved flow
  • Uniform inner and outer diameter and thickness for the entired length
  • Lining and Cover surface are adjoined without any solvent bonding agent for durability
  • Resistant to a wide range of chemicals (see Chemical resistance guide)
  • Reinforced by polyester yarn to withstand high pressure
  • Working temperature of -5oC to 60oC
  • Bending radius is 5 times of ID
  • Light weight
  • Highly flexible for the ease of handling and operation



Application in 4 categories


1.Chemical- Chemical line feeder for industrial process (see Chemical resistance guide)
2.Water- Factory water supply and drainage line
3.Oil- Line feeder for Lubricating Oil
4.Compressed Air- Piping for pneumatic equipment
- Distribution Line


TECHNICAL DATA
Serial No. Nominal Size Size WP
Working Pressure		 BP
Bursting Pressure		 Gross Weight
ID X OD lenght / roll
(inch) (mmXmm) (m) (kgf/cm2) at 20 oC (kgf/cm2) at 20 oC (kg/roll)
MP04WP105/324X91001040.007
MP06WP101/46X1140.009
MP08WP105/168X13.540.0013
MP09WP103/89X1540.0015
MP10WP1013/3210X1640.0016
MP12WP081/212X18832.0017
MP15WP085/815X2232.0027
MP19WP033/419X2650624.0017
Due to continuous improvement in our products, we reserve the rights to amend specifications without prior notice.
